Peptide Arrays

Peptide arrays were invented by Dr. Ronald Frank [1] who was the first to parallelize the Nobel prize awarded solid phase peptide synthesis [2; Bruce Merrifield, Nobel prize for chemistry in 1984]. In doing so, he first dissolved the 20 different amino acid building blocks for peptide synthesis in a solvent, and then spotted these 20 different solutions to defined spots on an amino-terminated solid support. If repeated for several layers, this procedure builds up many different peptides in a combinatorial synthesis, each on a different spot (Fig. 1). One drawback of this “SPOT synthesis” method is the low density of only ~25 peptides per cm2. This is due to the difficulties to deposit very small droplets on a solid support that tend to mix with neighbouring droplets or evaporate before the coupling reaction is finished.

Solid-material-based-method: In order to circumvent these technical difficulties, we developed a prize awarded [3, 4] “solid-material-based-method”, that first embeds the amino acid building blocks within solid materials. The different amino acids are then consecutively addressed to very small areas on a two-dimensional support as solid “amino-acid-particles”, either by a “peptide-laser-printer“, [5] (more) or by the electrical fields of a computer chip’s pixel electrodes [6], or with the help of small cavities that randomly accommodate exactly one “amino-acid-particle”. [7] (more) In yet another variation of this theme, a nano3D printer uses single laser pulses to transfer tiny ”amino-acid-spots” from a donor to an acceptor. Simply by consecutively exchanging the first donor slide with additional donor slides the acceptor is structured with all the 20 different amino acid building blocks – each embedded within a solid material. [8] (more)

In all of these cases the coupling reaction is then induced simply by melting the solid-material-embedded layer of amino acid building blocks, which frees hitherto immobilized amino acid derivatives to diffuse to and react with amino groups on the surface of the support. [10] Technical advantages are (i) very small spot sizes due to structuring with solid materials, (ii) stability of reactive chemicals due to shielding them within a solid material, and (iii) the “ready-to-go-status” of polymer-embedded chemical reactants – once melted, they immediately start to diffuse towards their reaction partner. [9]

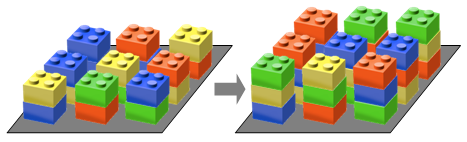

Fig. 1; Combinatorial synthesis. A limited number of monomeric amino acid building blocks yields a plethora of different peptides.
