Cary Eclipse fluorescence spectrometer
Device name: Cary Eclipse fluorescence spectrometer
Device responsible: Nicolò Baroni
Room: R203
Wavelength range Excitation: 190 - 1100 nm
Wavelength range Emission: 190 - 1100 nm
Dimensions (W x D x H): 560 mm x 560 mm x 250 mm
Getting started-Scan
- Turn on the device and turn on the computer; don’t start the software immediately.
- Open the folder on desktop "Cary Eclipse" and choose the task "Scan".
- Go to scan set-up to put the desired setting (see below).
- Press Ok and then press the start button to start the measurement.
Scanning Set-Up
I Three modes of operation are offered: fluorescence, phosphorescence and bio-/chemi-luminescence.
II Select the measurement to perform: excitation, emission and synchronous (scans with a constant wavelength or wavenumber difference between monochromators to resolve multi-component mixtures).
III Select to scan in wavelength, wavenumber, angstroms or electron volts.
IV Set excitation and starting and ending wavelengths.
V Precise control over how much signal averaging is done and how frequently data points are collected.

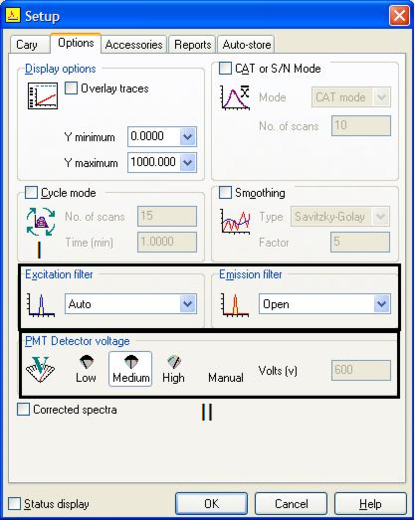

I Set excitation and emission filter.
II Set the voltage of the PMT detector to have a better resolution of the low intensity signals.
