Piezoelectric conversion of thermal energy

Our innovative Piezoelectric Thermomagnetic Generator (PTMG) is designed to convert low-grade thermal energy into usable electrical power. By integrating a thermo-magnetic film generator with a piezoelectric energy conversion layer, this device transforms waste heat into mechanical motion, which is then converted into electricity—offering a promising solution for powering off-grid electronics, IoT systems, and wearable medical devices.

The generator operates effectively across a wide temperature range, with optimal performance observed around moderate heat source temperature near 100°C. Within this range, the device achieves stable resonant operation, characterized by distinct frequency patterns that enable efficient energy conversion. At lower temperatures, reduced heat flow results in slower, non-resonant cycles, while excessive heat may lead to operational instabilities due to heat accumulation in the thermo-magnetic material.

By integrating a voltage-doubling rectification circuit, the PTMG successfully converts harvested AC power into a usable DC output with reasonable power per footprint when compared to its induction based TMG device counterpart. This breakthrough in energy harvesting technology paves the way for self-powered electronic systems, reducing dependence on batteries while utilizing widely available waste heat.

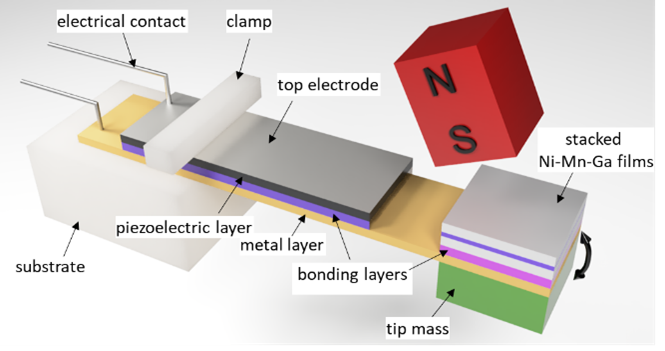

Figure a) Layout of TMG with Piezoelectric layer.

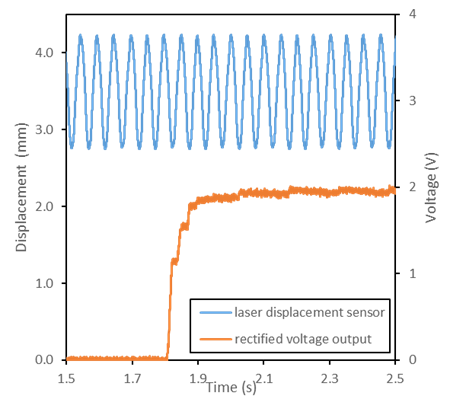

Output of TMG while operating in resonant self-actuation mode

Figure b) Output of TMG while operating in resonant self-actuation mode.

Further information on this topic can be retrieved from the IECAT 2024 talk in the  YouTube video: "IECAT 2024 Day 3, Session 4: Remarkable actuator application" (Link to YouTube video)
